nPP PCD

nLight Wired Phase Adaptive Dimmer

By nLight

  • Overview
  • Specifications

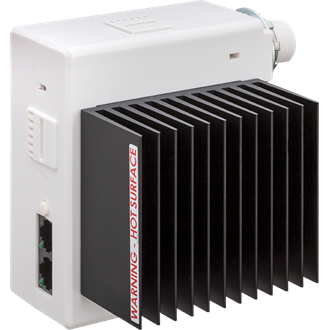

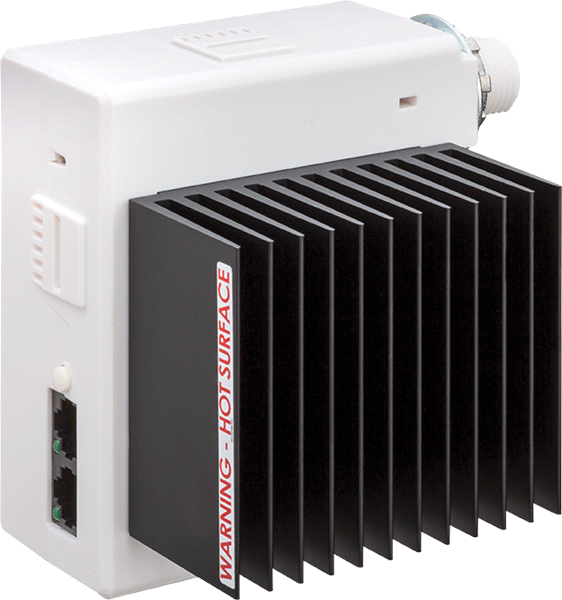

The nPP PCD power pack is an adaptive phase control dimmer that delivers significant performance and design versatility. It is designed to control large phase dimmed loads, controlling forward-phase-dimming and reverse-phase-dimming loads as large as 16A at 120VAC and 277VAC. This power pack also provides nLight bus power – up to 40MA from each of its two RJ-45 ports by transforming Class 1 line voltage (120-277 VAC) to Class 2 low voltage (24 VDC). This power is utilized by other nLight devices within the power pack’s local control zone.
Read More
Read Less
Control Device Type Lighting Relay
Product Type Power Pack
Color Red
Regulatory Listing UL924
Series NPP
  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET nLight Wired NPP Phase Control Dimmer.pdf nPP PCD Spec Sheet 3/2/2023 View
  • Photometry & Revit (BIM)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions nPP PCD_IG.pdf nLight nPP PCD Phase Control Dimming Device Installation Guide 2/27/2023 View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Sell Sheet nLight Adaptive Phase Dimmer sell sheet.pdf nLight Adaptive Phase Dimmer sell sheet 2/28/2023 View
