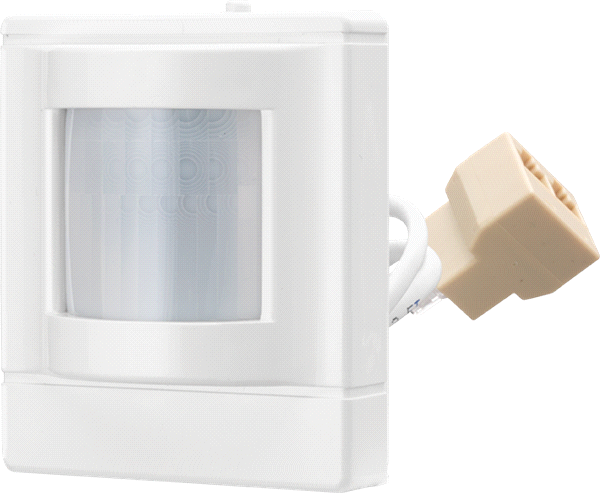

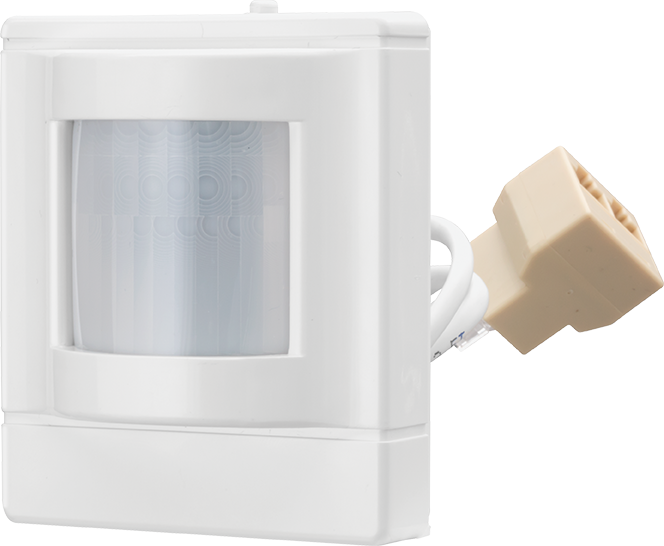

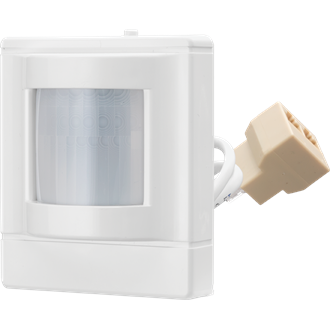

nWV 16_003.png

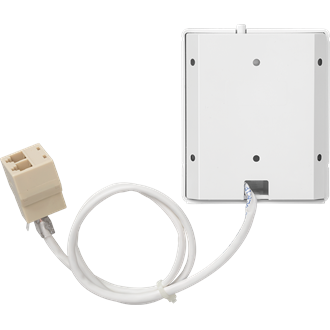

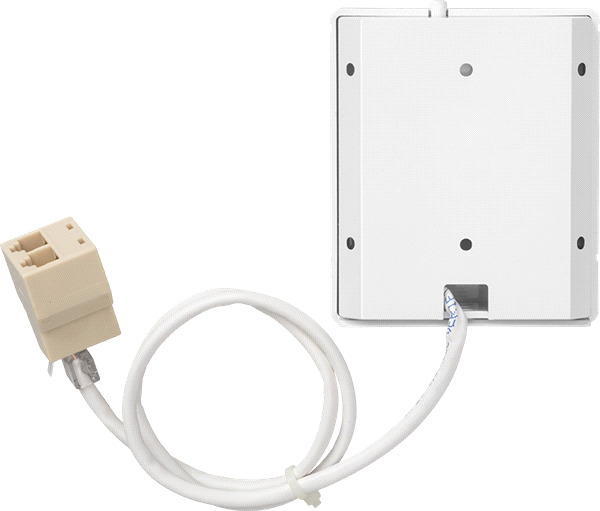

nWV 16_006.png

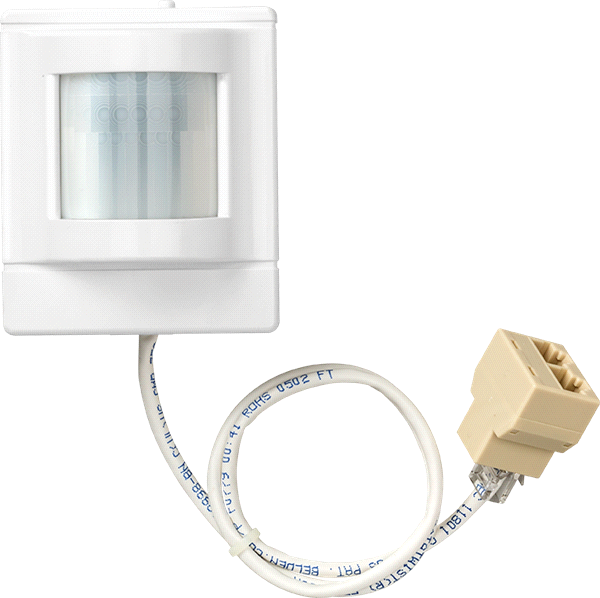

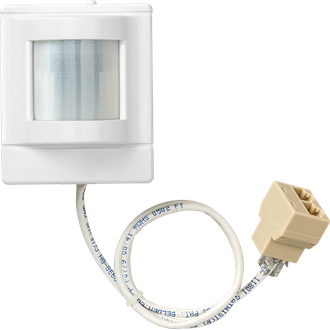

nWV 16_001.png

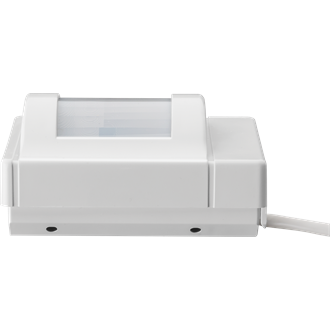

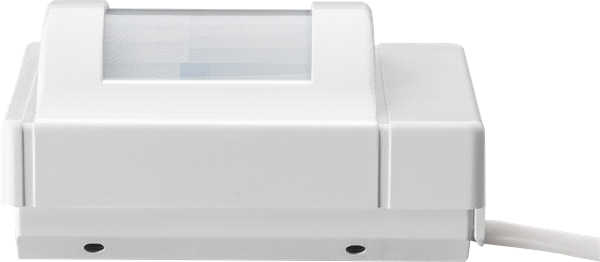

nWV 16_005.png

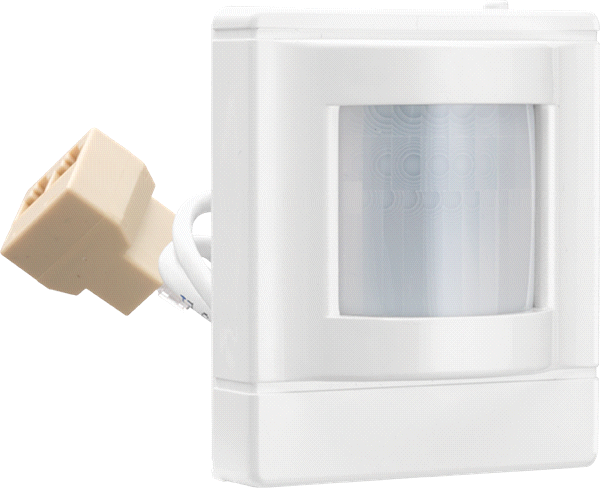

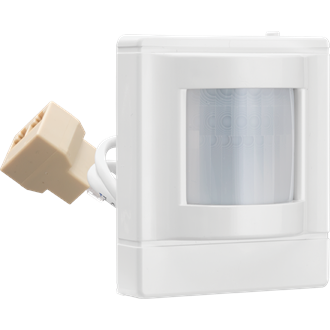

nWV 16_002.png

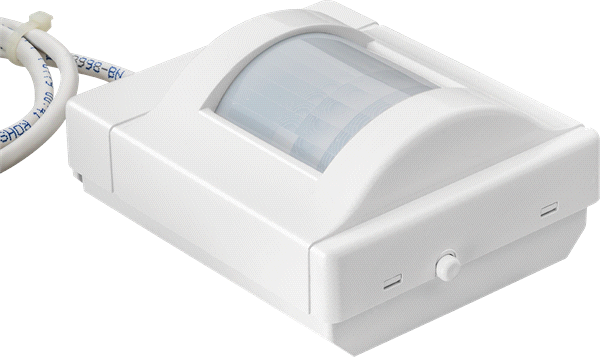

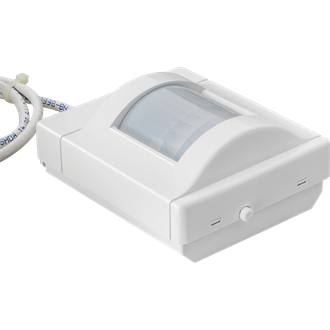

nWV 16_004.png

nWV 16 Family

Wide View Occupancy Sensor

By nLight

    DLC Standard
  • Overview
  • Specifications

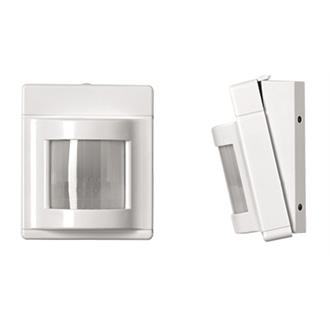

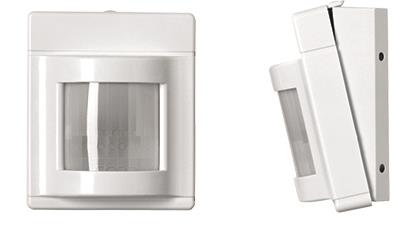

The nLight nWV 16 Series Wide View occupancy sensor is designed to mount in a corner and detect small motions up to 40 ft away, and larger motions up to 70 ft away. This makes it ideal for 30 ft x 30 ft classrooms or corridors up to 70 ft long. The enclosure's convenient tilting feature enables the sensor to be mounted at any height from 8 to 10 ft. When corner or wall mounting is not possible, the WV BR ceiling bracket accessory can be used to mount the nWV 16 to the ceiling. Additionally, the nWV 16 may be used in combination with other nLight sensors to customize coverage for very large or irregularly shaped spaces. For rooms with obstructions, use the nWV PDT 16 Series sensor which adds Microphonics detection.
PIR Occupancy Detection
120~194;~186; by 40 ft. Coverage for Small Motion
Communicates w/ nLight Network
Remotely Configurable/Upgradeable
Push-Button Programmable
Programmable w/o removing cover
Adjustable Time Delay
100 Hr. Lamp Burn-in Timer Mode
Green LED Indicator
Read More
Read Less
A+ Capable Yes
Control Device Type Daylight Sensor
Mounting Type Surface
Networkable Control Networkable Control
Product Type Sensor
Color White
Finish Gloss
Voltage Low Voltage
Compliance Listing DLC Standard, ROHS
Series NWV
Application Type Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Retail, Sports and Recreation, Warehouses

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET nWV 16 & nWV PDT 16 Form nLight nWV Corner Mount 120° Wide View Sensor 5/8/2023 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions IN-1.3.pdf nLight Occupancy Sensor Programming Instructions View
    Installation Instructions nWV 16 Mounting 11 nLight nWV 16 Mounting Instructions View
    Riser Model nwv riser.dwg nWV riser model
    Wiring Diagram nWV 16 Wiring nLight nWV Wide View Sensor Wiring Diagram View
